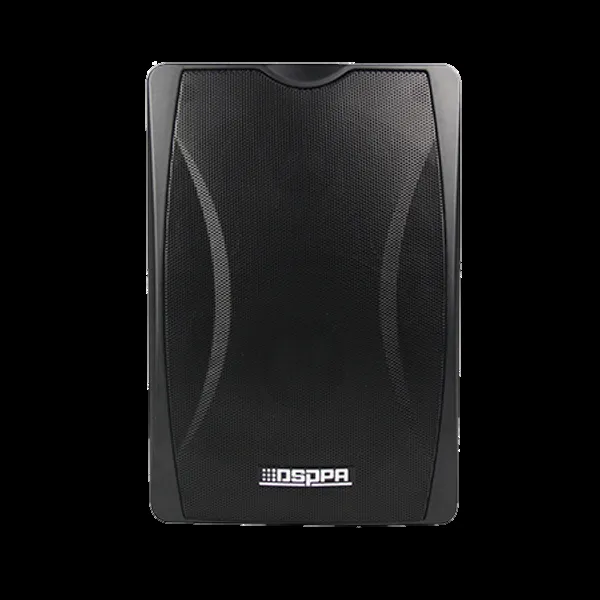

DSPPA DSP8063B Wall Mount Speaker
The DSPPA DSP8063B is a 30 W two-way wall-mount speaker with a built-in 70 V/100 V transformer and a rear rotary power tap, so each unit's output can be trimmed to suit its position in a distributed system. It pairs a 5" polypropylene woofer with a 1" silk-dome tweeter in a bass-reflex ABS enclosure rated UL94V-0 for fire resistance, behind an anodised aluminium grille. It also accepts a direct 8 ohm low-impedance connection, and ships with a mounting bracket and hanging holes for straightforward wall installation.
Available from Sound Creations Ltd Rwanda in Kigali, with manufacturer warranty and local after-sales support.
Specifications
| Model | DSP8063B |
|---|---|
| Type | 2-way wall-mount speaker with built-in 70 V/100 V transformer |
| Speaker units | 5" x1 woofer, 1" x1 tweeter |
| Rated power | 30 W |
| Power taps (70 V) | 30 W / 15 W / 8 W / 5 W / 2.5 W |
| Power taps (100 V) | 30 W / 15 W / 8 W / 5 W |
| Input | constant voltage 70 V / 100 V, or constant resistance 8 ohms |
| Frequency response | 80 Hz - 20 kHz |
| Sensitivity (1 m, 1 W) | 90 dB +/- 2 dB |
| Max SPL (1 m) | 105 dB +/- 2 dB |
| Enclosure | UL94V-0 fireproof thickened ABS, black |
| Grille | 1060 pure aluminium, hardened and anti-oxidation treated |
| Dimensions (H x W x D) | 280 x 194 x 185 mm |
| Weight | 3.2 kg |
| Mounting | wall bracket with hanging holes, rust-proof treated |
Specifications are indicative. Confirm the current datasheet before ordering.
