Yamaha CBR10

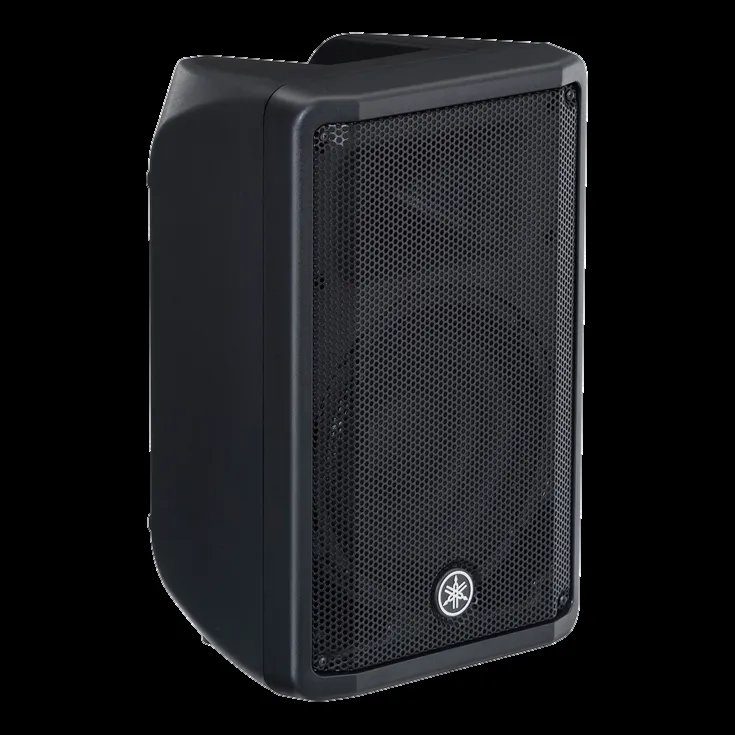

The Yamaha CBR10 is the most compact model in the CBR range of passive two-way bass-reflex loudspeakers, combining a 10" woofer with a 1" throat compression driver on a wide-dispersion constant-directivity horn. Rated at 350 W program into 8 ohms, it reaches a calculated maximum of 123 dB SPL and crosses over at 2.8 kHz. The moulded plastic cabinet includes a 50 degree floor-monitor angle, a top handle, two M8 rigging points and a 35 mm pole socket, so it suits both portable work and fixed installation.
Available from Sound Creations Ltd Rwanda in Kigali, with manufacturer warranty and local after-sales support.
Specifications
| Speaker type | 2-way passive speaker, bass-reflex type |
|---|---|
| Frequency range (-10 dB) | 50 Hz - 20 kHz |
| LF component | 10" cone, 2" voice coil, ferrite magnet |
| HF component | 1" compression driver, 1" throat |
| Crossover frequency | 2.8 kHz |
| Nominal coverage | 90 degrees horizontal x 60 degrees vertical, constant-directivity horn |
| Nominal impedance | 8 ohms |
| Power rating | NOISE 175 W / PGM 350 W / PEAK 700 W |
| Sensitivity (1 W, 1 m on axis) | 94 dB SPL |
| Maximum SPL (calculated, 1 m) | 123 dB SPL |
| Floor monitor angle | 50 degrees |
| Connectors | 1/4" phone x1, speakON NL4MP x1 |
| Rigging points | Bottom x2 (M8 x 15 mm eyebolts) |
| Pole socket | 35 mm (bottom x1) |
| Handle | Top x1 |
| Material / finish | Plastic, black |
| Dimensions (W x H x D) | 308 x 493 x 389 mm (12.1" x 19.4" x 11.4") with rubber feet |
| Net weight | 9.4 kg (20.7 lbs) |
Specifications are indicative. Confirm the current datasheet before ordering.
